MAX4168EBU General Description


The MAX4165-MAX4169 family of operational amplifiers combines excellent DC accuracy with high output current drive, single-supply operation, and rail-to-rail inputs and outputs. These devices operate from a single +2.7V to +6.5V supply, or from dual ±1.35V to ±3.25V supplies. They typically draw 1.2mA supply current, and are guaranteed to deliver 80mA output current.

The MAX4166/MAX4168 have a shutdown mode that reduces supply current to 38μA per amplifier and

places the outputs into a high-impedance state. The MAX4165-MAX4169's precision performance combined with high output current, wide input/output dynamic range, single-supply operation, and low power consumption makes them ideal for portable audio applications and other low-voltage, battery-powered systems. The MAX4165 is available in the space-saving 5-pin SOT23 package and the MAX4166 is available in a tiny 2mm x 2mm x 0.8mm μDFN package.



 ● 80mA (min) Output Drive Capability

 ● Rail-to-Rail Input Common-Mode Voltage Range

 ● Rail-to-Rail Output Voltage Swing

 ● 1.2mA Supply Current per Amplifier

 ● +2.7V to +6.5V Single-Supply Operation

 ● 5MHz Gain-Bandwidth Product

 ● 250μV Offset Voltage

 ● 120dB Voltage Gain (RL = 100kΩ)

 ● 88dB Power-Supply Rejection Ratio

 ● No Phase Reversal for Overdriven Inputs

 ● Unity-Gain Stable for Capacitive Loads to 250pF

 ● Low-Power Shutdown Mode:

    ⊕ Reduces Supply Current to 38μA Places

    ⊕ Outputs in High-Impedance State

 ● Available in 5-Pin SOT23 Package (MAX4165) or 2mm x 2mm x 0.8mm μDFN (MAX4166)



 ● Portable/Battery-Powered Audio Applications

 ● Portable Headphone Speaker Drivers

 ● Laptop/Notebook Computers

 ● Sound Ports/Cards

 ● Set-Top Boxes

 ● Cell Phones

 ● Hands-Free Car Phones (kits)

 ● Signal Conditioning

 ● Digital-to-Analog Converter Buffers

 ● Transformer/Line Drivers

 ● Motor Drivers



Supply Voltage (VCC to VEE)....................................................7V

IN_+, IN_-, SHDN_............................(VEE - 0.3V) + (VCC + 0.3V)

OUT_ (shutdown mode) ...................(VEE - 0.3V) + (VCC + 0.3V)

Output Short-Circuit Duration to VCC or VEE (Note 1) .....Continuous

Continuous Power Dissipation (TA = +70°C)

5-Pin SOT23 (derate 7.10mW/°C above +70°C)..........571mW

8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) ...727mW

8-Pin SO (derate 5.88mW/°C above +70°C)................471mW

8-Pin μMAX (derate 4.10mW/°C above +70°C) ...........330mW

8-Pin μDFN (derate 4.8mW/°C above +70°C) .............380mW

10-Pin μMAX (derate 5.60mW/°C above +70°C) ..........444mW

14-Pin Plastic DIP (derate 10.00mW/°C above +70°C) 800mW

14-Pin SO (derate 8.33mW/°C above +70°C)...............667mW

Operating Temperature Range ...........................-40°C to +85°C

Junction Temperature......................................................+150°C

Storage Temperature Range .............................-65°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C





============================================

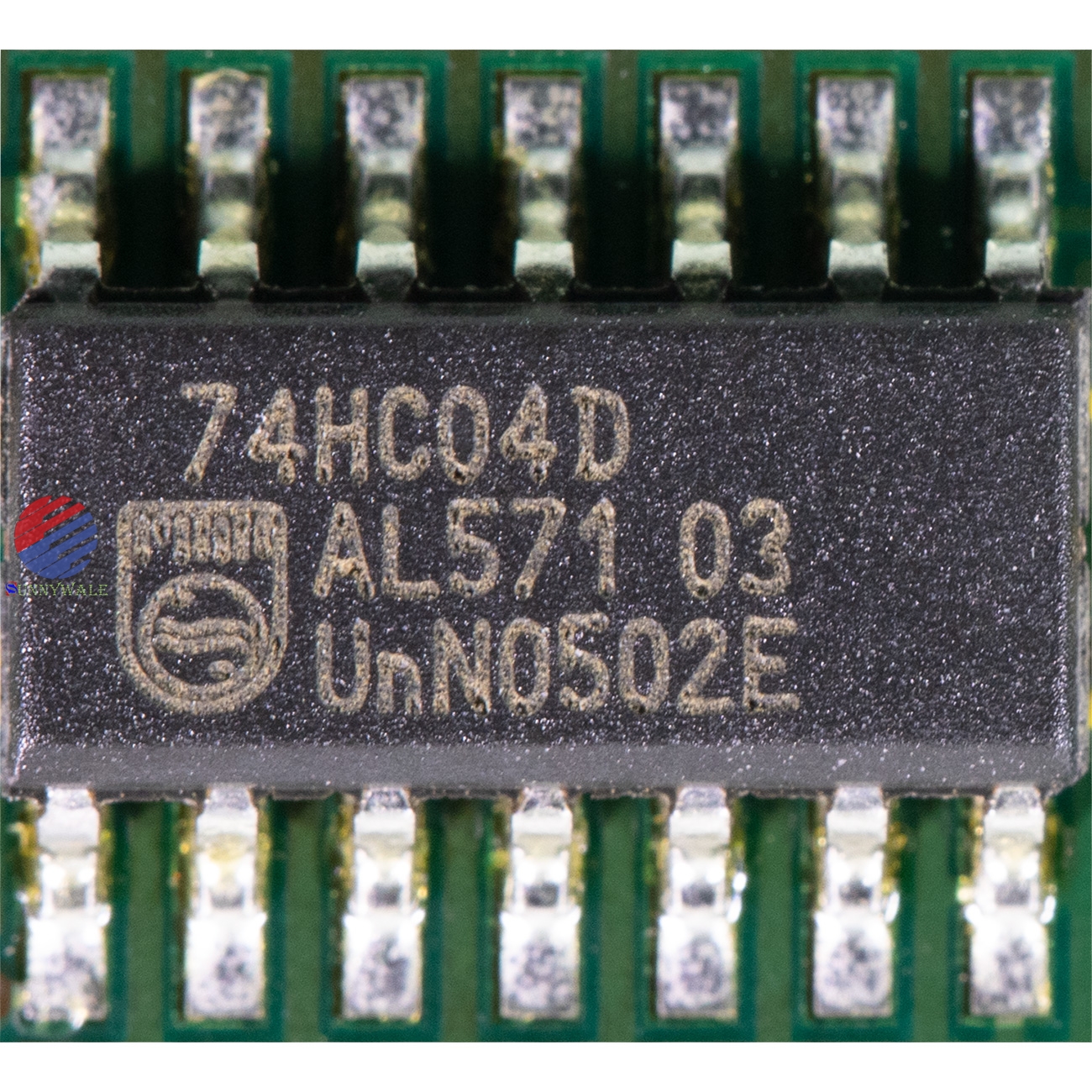

74HC04D-datasheet-philips.pdf

 ● Complies with JEDEC standard no. 8-1A

 ● ESD protection:

    ⊕ HBM EIA/JESD22-A114-A exceeds 2000 V

    ⊕ MM EIA/JESD22-A115-A exceeds 200 V.

 ● Specified from -40 to +85 °C and -40 to +125 °C.



The 74HC/HCT04 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDECstandard no. 7A. The 74HC/HCT04 provide six inverting buffers.

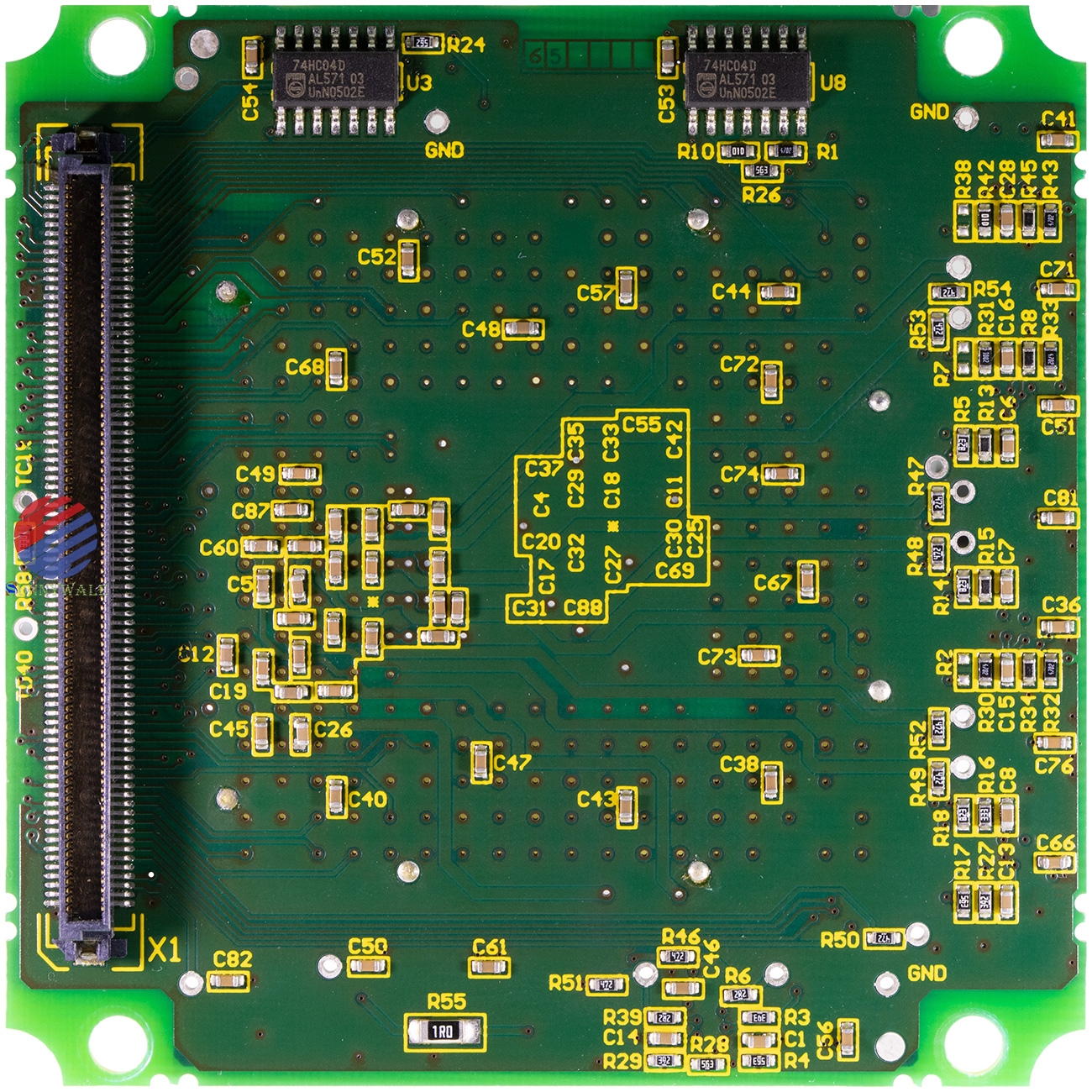

All of the above pictures are taken after matting the online showing, what you see is what you get.





Click or copy the link to browser free download the *** datasheet PDF file (If you need to unlock the password, contact webmaster Wechat: 9308762).



Freight is free when you buy 2 pieces in China, if you have ** inventory, you can sell to me, if you need buy **, you can ask me to buy.



If you want to know about similar products ***, or click here，or Visit The official website: sunnywale.com，Search the keywod“**”,it can show more details.



For more details and HD images, please copy the following link to open in your browser to view our official website；or visit our official website: Sunnywale.com , searching keyword "**".



For more details, please click 中文版

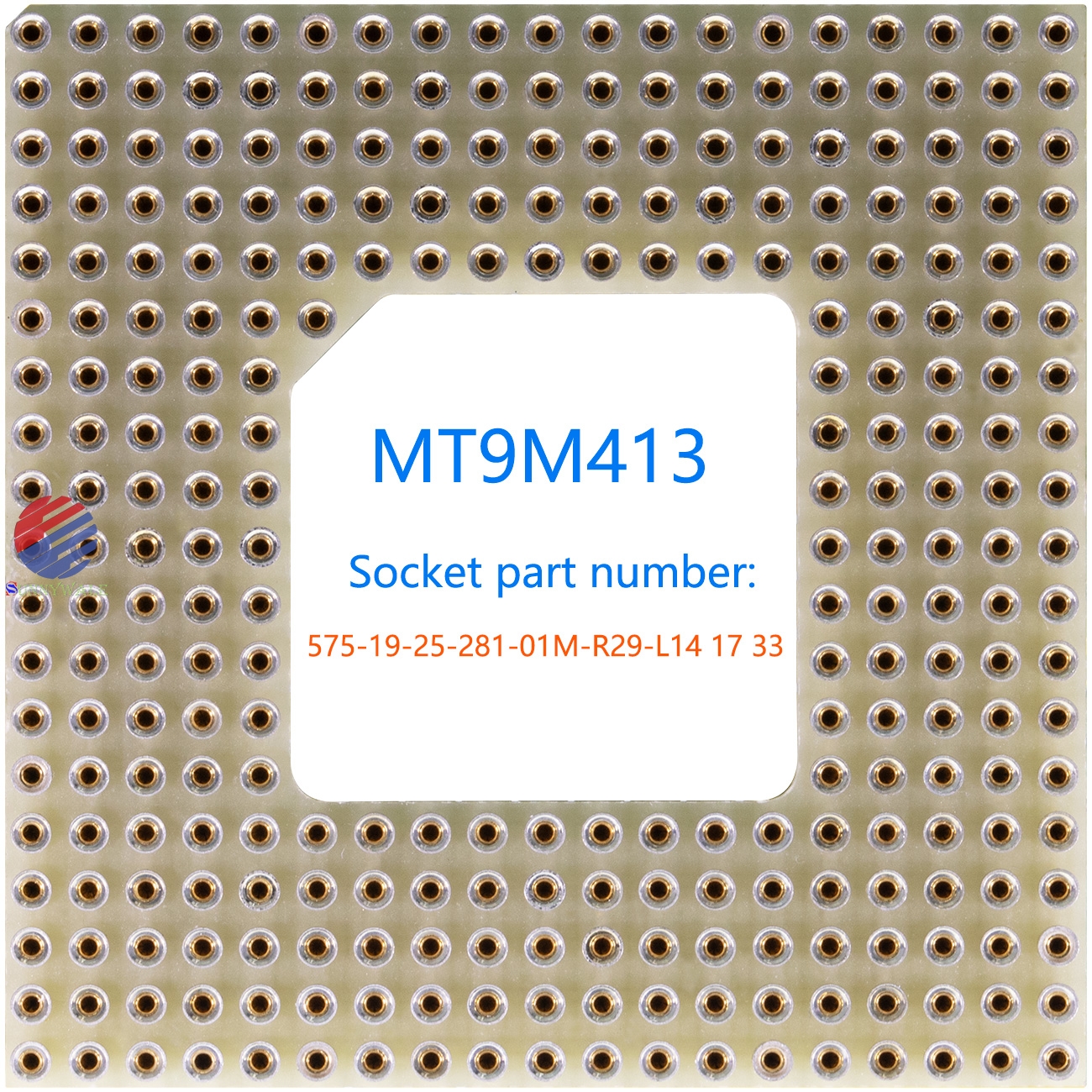

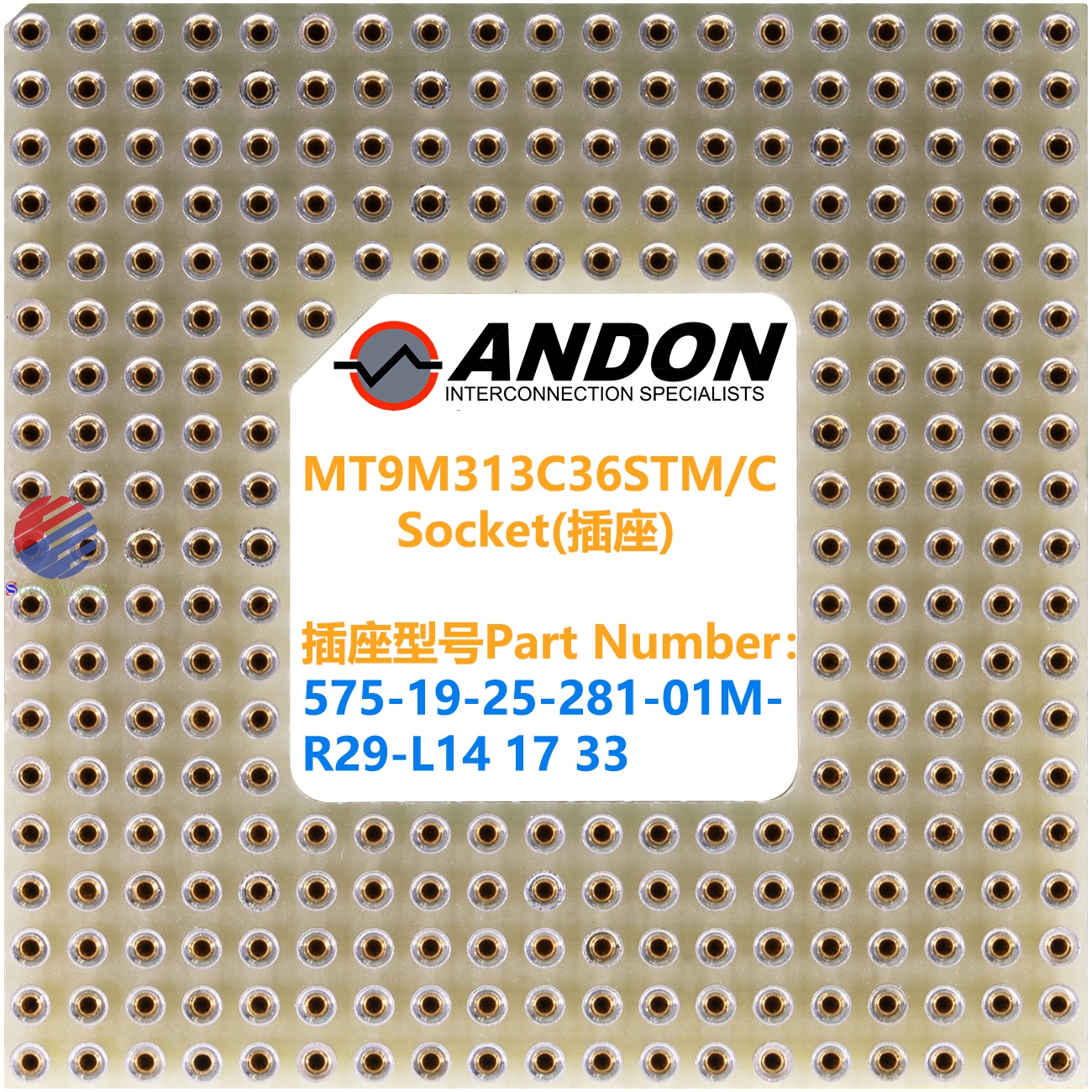

Buy now 575-19-25-281-01M-R29-L14 17 33,MAX4168EBU ,74HC04D
