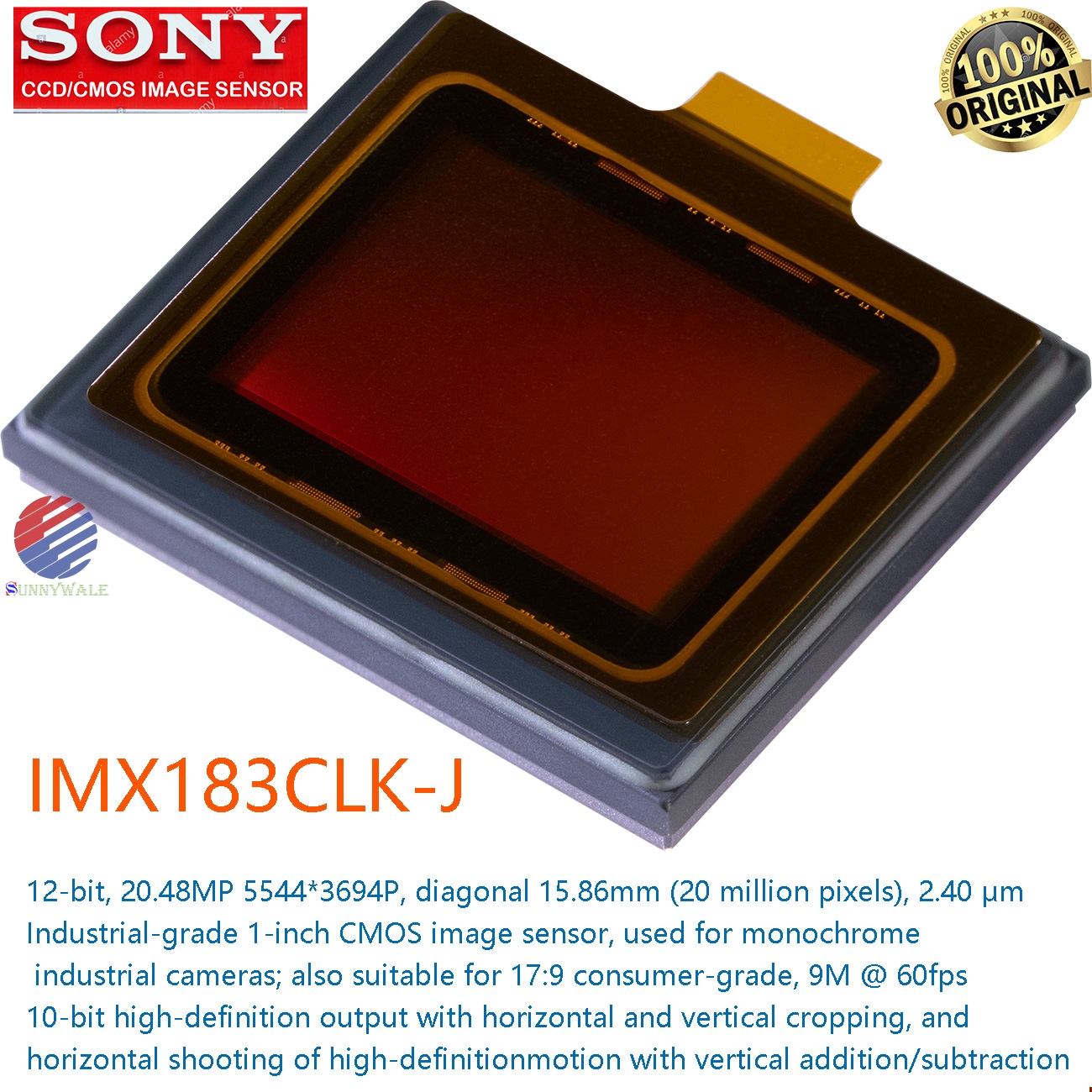

IMX183CLK-J SONY Diagonal 15.86 mm (Type 1) 20MP CMOS Image Sensor with Square Pixel for Monochrome industrial Cameras
IMX183CLK-J Description
The IMX183CLK-J is a diagonal 15.86 mm (Type 1) CMOS image sensor with a monochrome square pixel array and approximately 20.48 M effective pixels. 12-bit digital output makes it possible to output the signals of approximately
20.48 M effective pixels with high definition for shooting still picture.
In addition, this sensor enables output effective approximately 9.03 M effective pixels (aspect ratio approx.17:9) signal performed horizontal and vertical cropping at 59.94 frame/s in 10-bit digital output format for high-definition moving picture.
Furthermore, it realizes 12-bit digital output for shooting high-speed and high-definition moving pictures by horizontal and vertical addition and elimination.
Realizing high-sensitivity, low dark current, this sensor also has an electronic shutter function with variable storage time. In addition, as this product is designed for consumer use applications, note that when used for other applications, Sony Semiconductor Solutions Corporation does not guarantee the quality and reliability of the product.
This lack of guarantee should be kept in mind when using this product for other than consumer use applications.
IMX183CLK-J Features
◆ Input clock frequency 72 MHz
◆ All-pixel scan mode
Horizontal/vertical 2/2-line binning mode
Horizontal/vertical 3/3-line binning mode
Vertical 2/9 subsampling binning horizontal 3 binning mode
Vertical 2/9 subsampling binning horizontal 3 binning mode low power comsumption
Vertical 2/19 subsampling binning horizontal 3 binning mode
Vertical 2 binning horizontal 2/4 subsampling mode
◆ High-sensitivity, low dark current, no smear, excellent anti-blooming characteristics
◆ Variable-speed shutter function (minimum unit: 1 horizontal sync signal period (1XHS))
◆ Low power consumption
◆ H driver, V driver and serial communication circuit on chip
◆ CDS/PGA on chip. Gain +27 dB (step pitch 0.1 dB)
◆ 9-bit/10-bit/12-bit A/D conversion on chip
◆ All-pixel simultaneous reset supported (use with mechanical shutter)
◆ 118-pin high-precision ceramic package
IMX183CLK-J Device Structure
◆ CMOS image sensor
◆ Image size：Diagonal 15.86 mm (Type 1)
◆ Total number of pixels： 5 640 (H) × 3710 (V) approx. 20.92 M pixels
◆ Number of effective pixels
- Type 1 approx. 20.48 M pixels use : 5544 (H) × 3694 (V) approx. 20.48 M pixels
- Type 1/1.4 approx. 9.03 M pixels use : 4152 (H) × 2174 (V) approx. 9.03 M pixels
◆ Number of active pixels
- Type 1 approx. 20.48 M pixels use : 5496 (H) × 3672 (V) approx. 20.18 M pixels diagonal 15.86 mm
- Type 1/1.4 approx. 9.03 M pixels use : 4128 (H) × 2168 (V) approx. 8.95 M pixels diagonal 11.19 mm
◆ Number of recommended recording pixels
- Type 1 approx. 20.48 M pixels use : 5472 (H) × 3648 (V) approx. 19.96 M pixels aspect ratio 3:2
- Type 1/1.4 approx. 9.03 M pixels use : 4096 (H) × 2160 (V) approx. 8.85 M pixels aspect ratio approx. 17:9
◆ Chip size：16.05 mm (H) × 12.61 mm (V)
◆ Unit cell size：2.40 μm (H) × 2.40 μm (V)
◆ Optical black
Horizontal (H) direction : Front 48 pixels, rear 0 pixel
Vertical (V) direction : Front 16 pixels, rear 0 pixel
◆ Substrate material：Silicon
