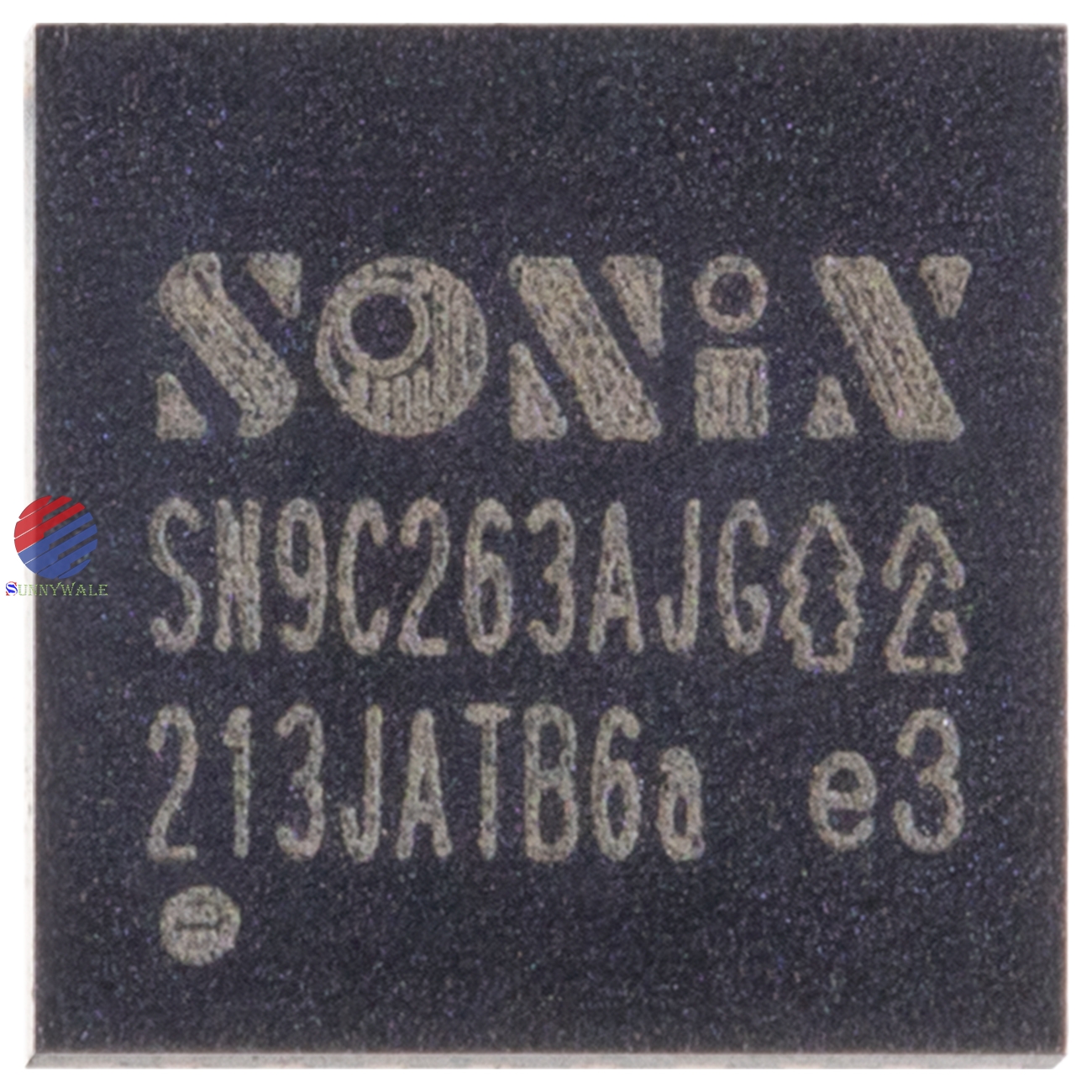

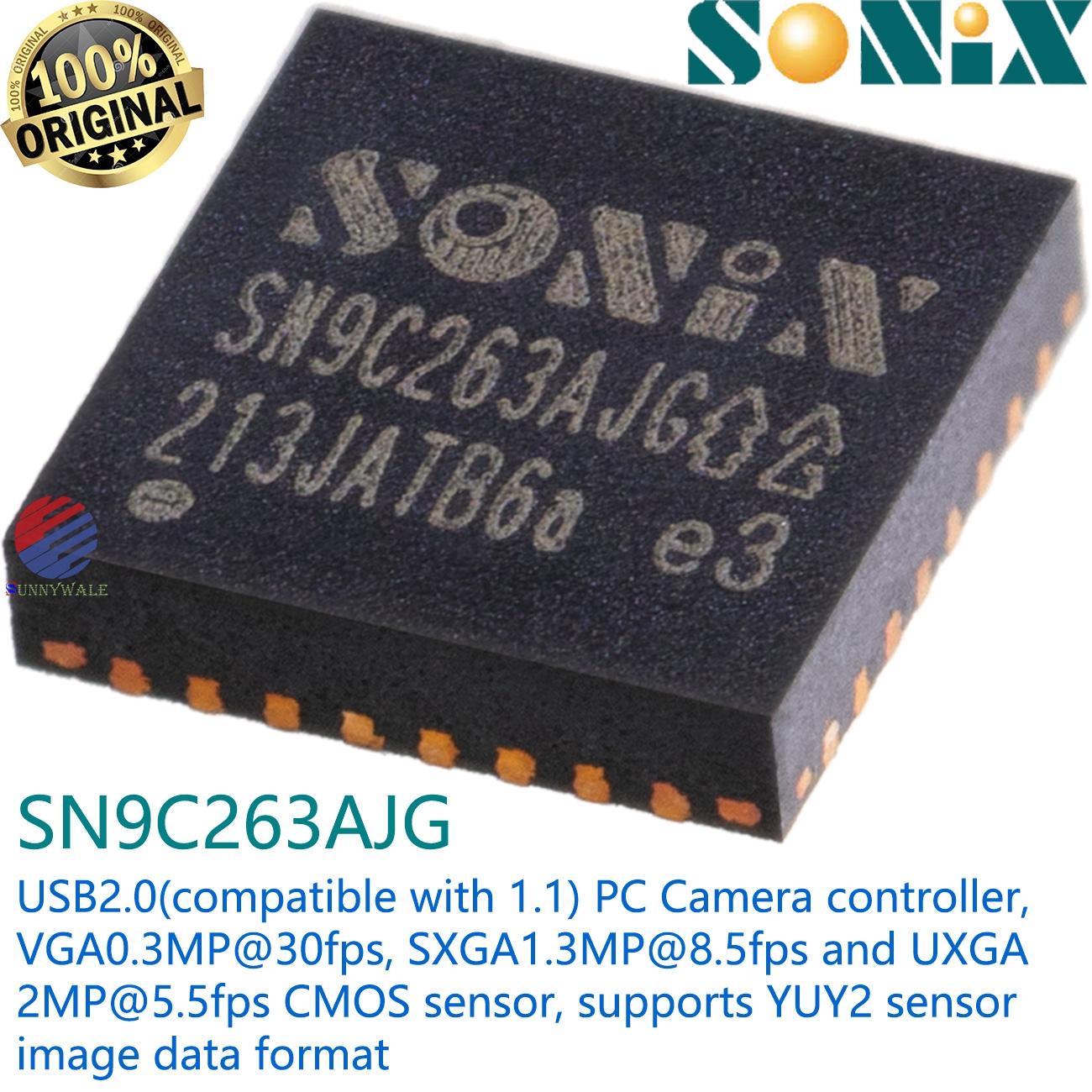

1 SN9C263AJG General Description
SN9C263AJG is a USB 2.0 compatible PC Camera controller. The built-in extreme low-power transceiver provides
the superior compatibility with various USB host and the best quality for image applications. It is fully compliant with USB Video Class. With the integrated sensor interface and color processing engine, it can support most VGA, SXGA and UXGA CMOS SOC sensors.
SN9C263 integrates 2 voltage regulators for sensor power. One is for sensor's analog parts. The other one is for sensor's core power. These build-in regulators can help saving BOM cost and PCB area.
SN9C263 integrates Clock Synthesizer for performance and power saving. An external crystal is not needed, so it can help saving BOM cost and PCB area.
SN9C263 is controlled by the embedded micro-controller and the statistics for AF is built-in. The flexible architecture is consisted of mask ROM, internal RAM and external serial-flash or EEPROM which can store the
customized codes and parameters. It's also possible to store all the program code in the external flash memory for customized design purpose. With the highly-integrated firmware architecture and the developing kit provided by SONiX, it’s easy for 3rd party to integrate a new type of CMOS sensor and GPIO definition for variant board configuration.
2 SN9C263AJG Features
2.01 System
● 3.3V single power supply, 1.8V Core (generated by internal regulator)
● Extreme low power consumption, when standby & suspend (Power consumption of sensor is not included)
● Built-in Clock Synthesizer for performance and power saving
● Built-in PLL for internal clock generation
● Using external serial flash to store customized code and data, or using EEPROM to store data.
● No external RAM needed
● 1.8V output power source to supply CMOS sensor's core power
● 2.8V output power source to supply CMOS sensor's analog power

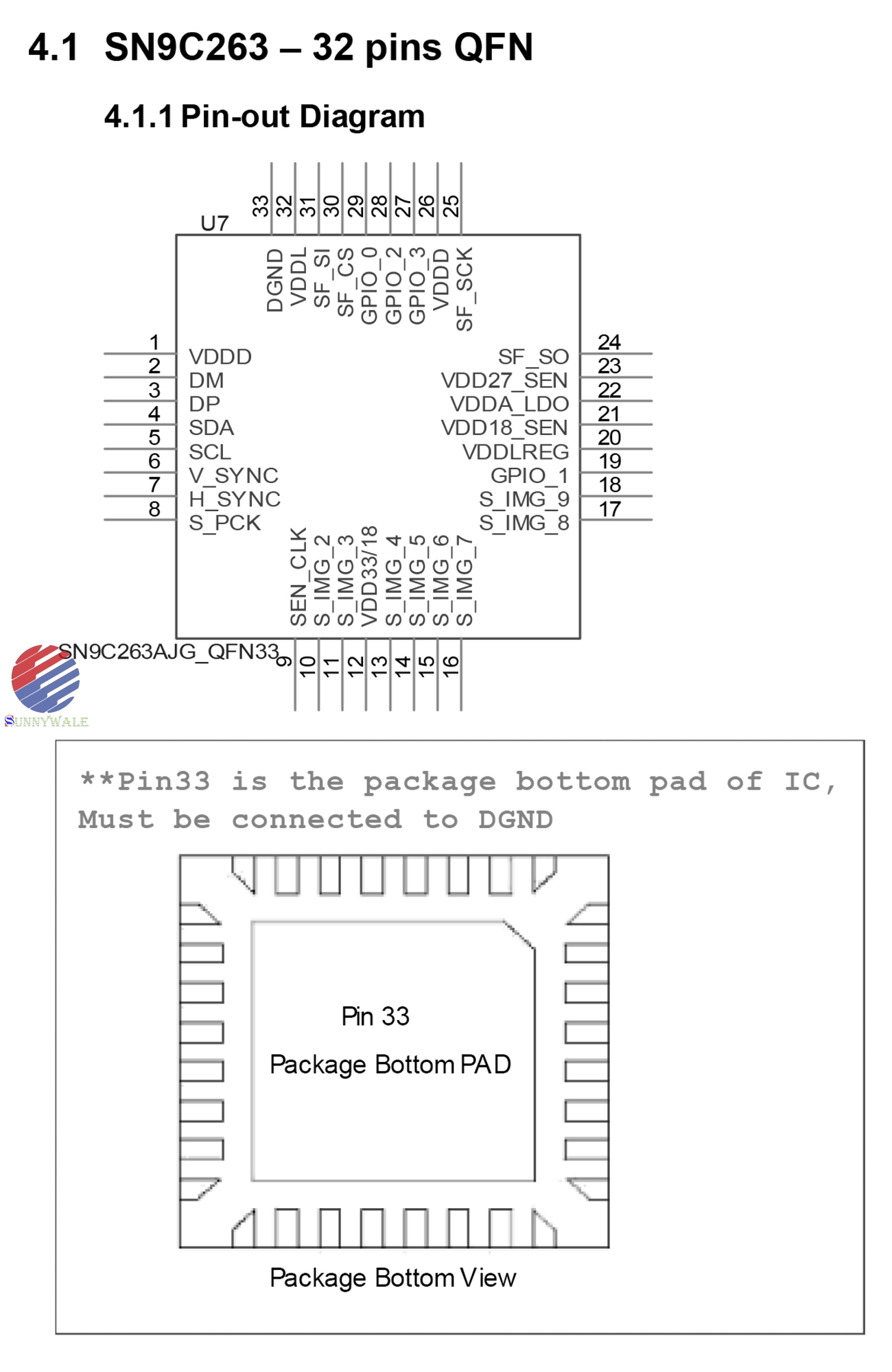

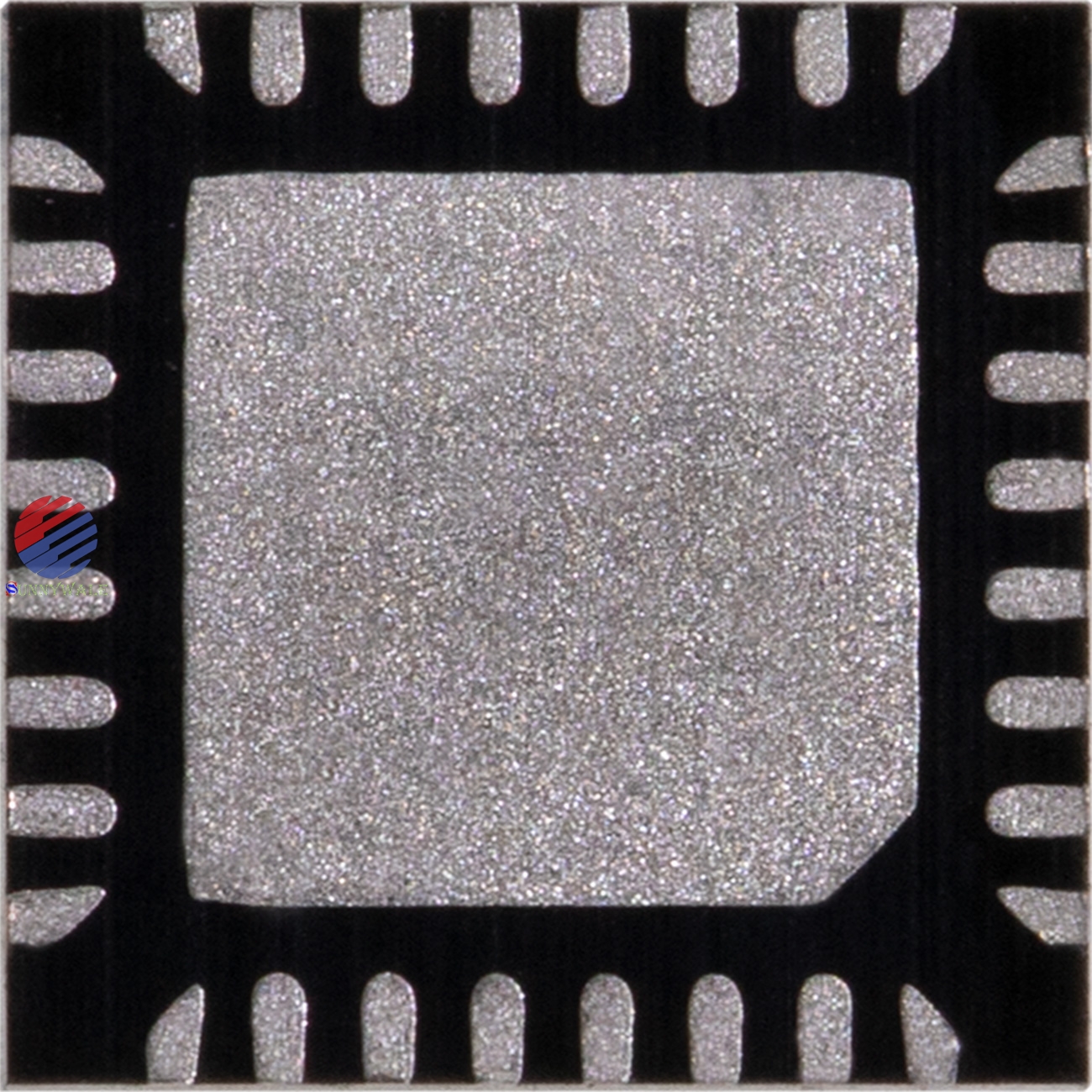

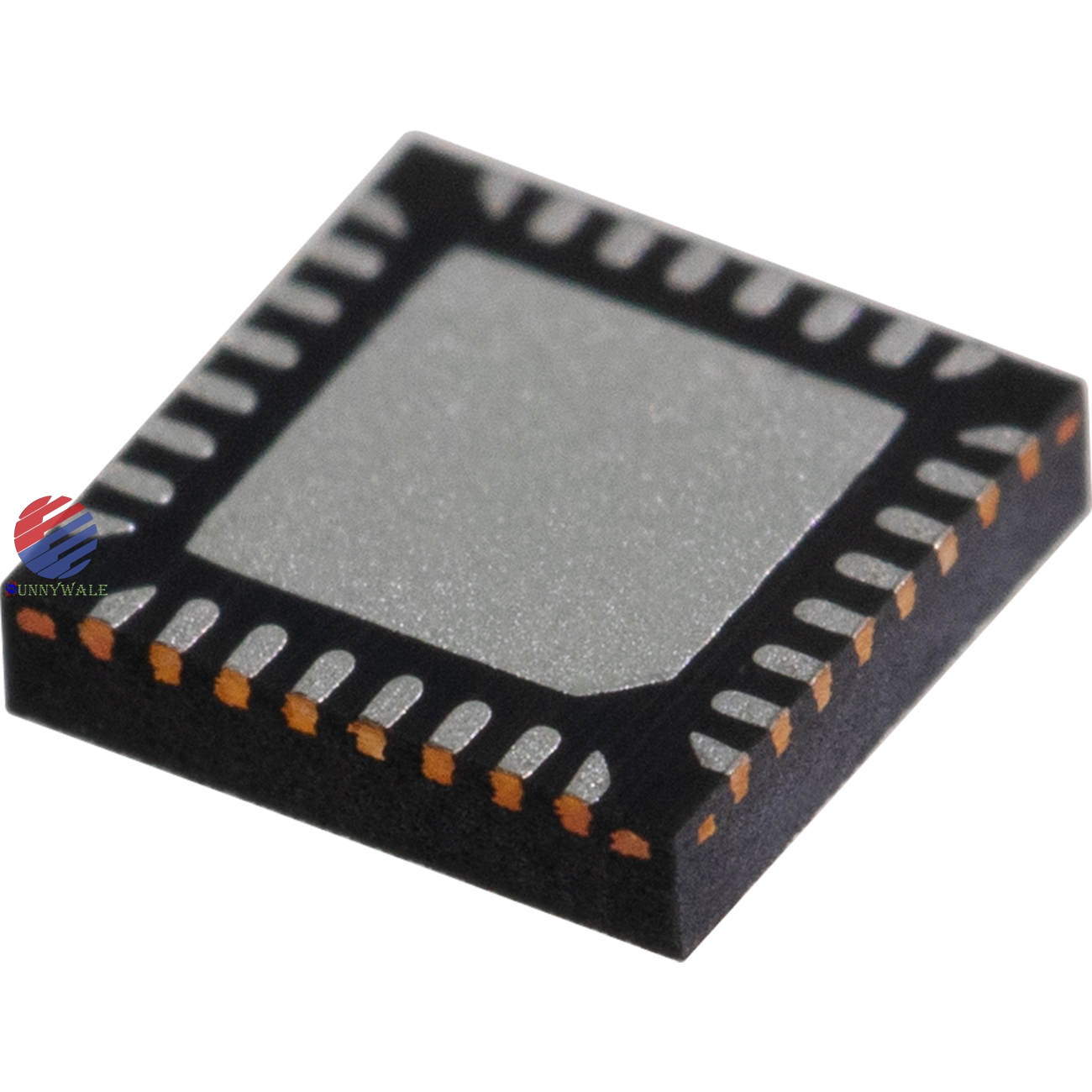

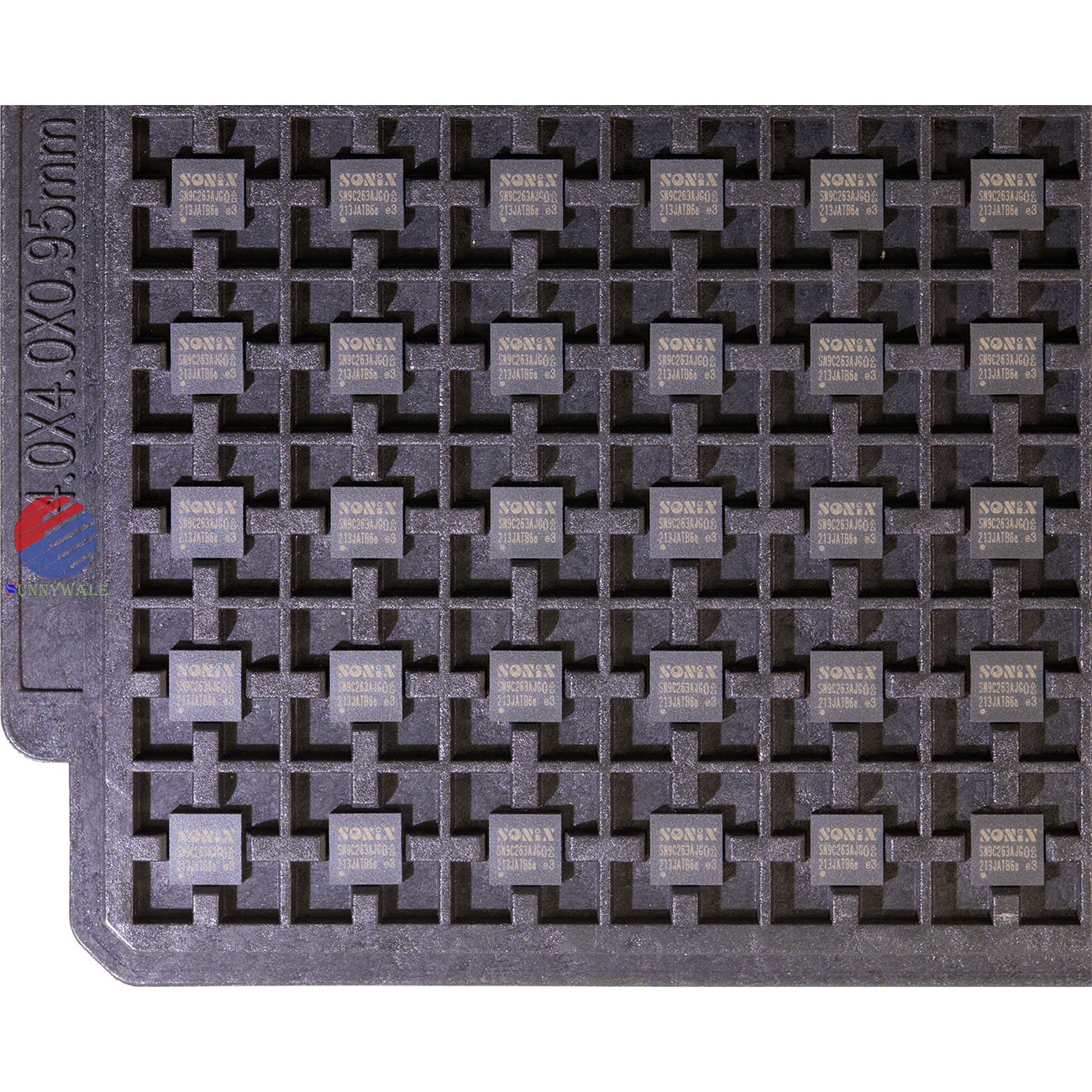

● 32-pin QFN package is available; please see later section for more detail.
2.02 USB Controller
● USB 2.0 compatible
● USB2.0 HS/FS auto sense and switch
● USB FS mode and USB disconnection are programmable
● USB Video Class 1.1 compliant
● 4 endpoints: CONTROL pipe, UVC Interrupt IN and Isochronous-IN (video, 24MB/s max), HID interrupt IN
● 6 alternate settings for Video Streaming Interface
2.03 SN9C263AJG Sensor Interface
● Support VGA, SXGA and UXGA CMOS ISP sensor
● Support YUY2 image data format from sensor
● Up to 48Mhz output clock for clock request of CMOS sensor silicon.
● Up to 96Mhz pixel clock is acceptable
● Support industrial standard 2-wire serial interface for sensor control
2.04 Image Pre-processing
● Configurable windowing function after sensor output
2.05 SN9C263AJG Color Processing
● AF edge statistics
● Programmable gamma table for Y channel
● Configurable windowing function after processed image
2.06 Scaling Engine
● 1/2, 1/4 smooth scaling on Y/Cb/Cr
● 3/5 second linear scaling for VGA input
2.07 Video / Still Image
● Output video / still image format:
◆ USB Video Class Uncompressed YUY2 payload (16bits/pixel)
● Still Image capture support UVC still image capture method 1/2
2.08 SN9C263AJG Frame rate
● Frame rate considering USB bandwidth limitation
● Frame rate depends on sensor characteristic
The maximum frame rate is limited by how many frame per second that sensor can output under maximum pixel clock and is limited on High-Speed USB ISO bandwidth 24MB/s
2.09 SN9C263AJG GPIO
● 4 GPIOs are available, 3 of them are predefined as LED control and sensor reset pin and serial flash write-protection control
2.10 SN9C263AJG Micro Controller and USB Device Features
● Built-in 8032 micro controller with 3K bytes data memory, and maximum CPU clock rate is 24MHz
● 4K bytes programmable SRAM
● Load extended 18KB F/W from external serial flash.
● Load VID/PID , manufacturer, product and serial number string from external serial flash /
EEPROM.
● Load UVC parameter definition from external serial flash / EEPROM.
● F/W is upgradeable from PC
● Force USB disconnect
2.11Pre-defined Function for USB Video Class
● Brightness control (UVC defined)
● Contrast control (UVC defined)
● Hue control (UVC defined)
● Saturation control (UVC defined)
● Sharpness control (UVC defined)
● Gamma control (UVC defined)
● Privacy control (UVC defined)
● LED indicator on video streaming
● Extension unit support
2.12 SN9C263AJG Platform Support
● Microsoft Windows XP 32bit SP2, Microsoft Windows XP 64bit, Microsoft Windows Vista 32bit, Microsoft Windows Vista 64bit, Microsoft Windows 7 32bit, Microsoft Windows 7 64bit
● Mac - OS X 10.4.8 or later
● Linux with UVC driver (open source available at http://linux-uvc.berlios.de/)
